bit32

Returns the number x shifted disp bits to the right. The number disp may be any representable integer. Negative displacements shift to the left.

This shift operation is what is called arithmetic shift. Vacant bits on the left are filled with copies of the higher bit of x; vacant bits on the right are filled with zeros. In particular, displacements with absolute values higher than 31 result in zero or 0xFFFFFFFF (all original bits are shifted out).

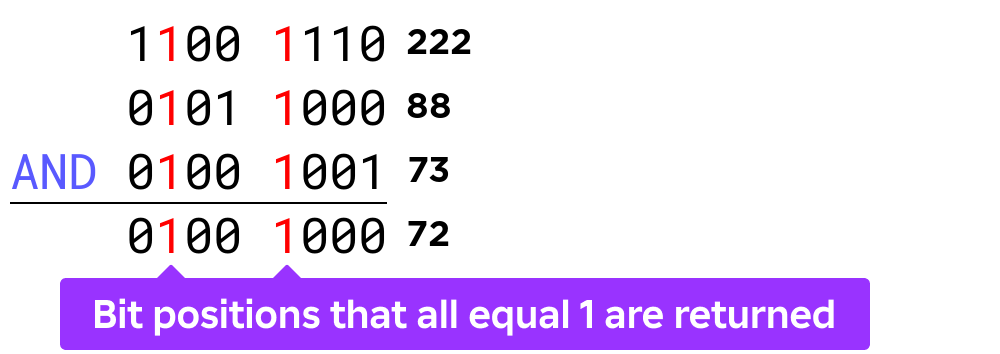

Returns the bitwise AND of all provided numbers.

Each bit is tested against the following truth table:

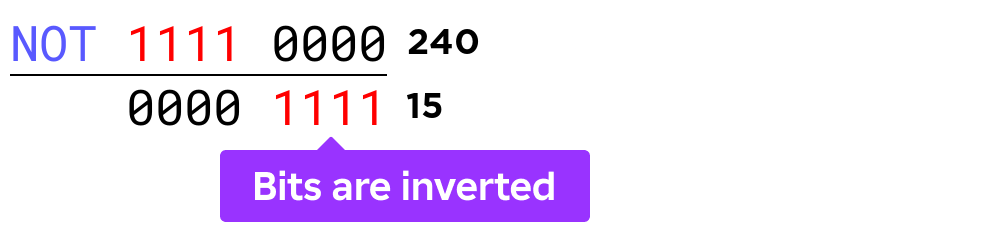

Returns the bitwise negation of x.

For any integer x, the following identity holds:

local x = 0xF0
assert(bit32.bnot(x) == (-1 - x) % 2^32)

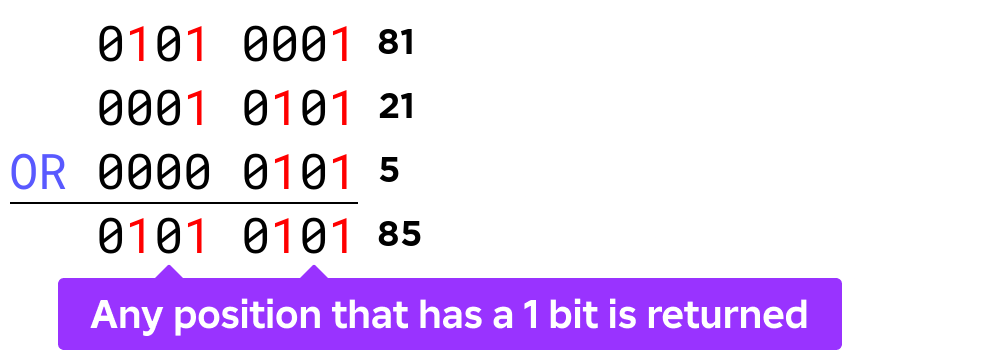

Returns the bitwise OR of all provided numbers.

Each bit is tested against the following truth table:

Returns true if the bitwise AND of all its operands is different from zero, false otherwise. This is functionally equivalent to bit32.band(...) ~= 0 but returns a boolean directly without the intermediate number.

This function is useful for testing whether one or more specific bits are set in a value. For example, you can check whether a particular flag is active in a bitmask:

local flags = 0x5 -- bits 0 and 2 are set
print(bit32.btest(flags, 1)) --> true (bit 0 is set)
print(bit32.btest(flags, 2)) --> false (bit 1 is not set)
print(bit32.btest(flags, 4)) --> true (bit 2 is set)

When called with more than two arguments, all values are ANDed together before the zero-test:

print(bit32.btest(0xFF, 0x0F, 0x03)) --> true (0xFF & 0x0F & 0x03 == 0x03)

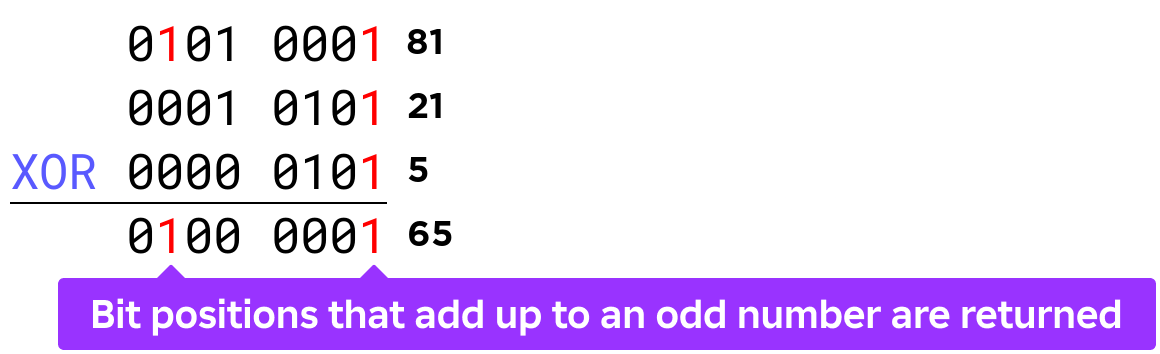

Returns the bitwise XOR of all provided numbers.

Each bit is tested against the following truth table:

Reverses the byte order of the 32-bit unsigned integer representation of x. The four bytes are rearranged so that the most-significant byte becomes the least-significant byte and vice versa, converting between big-endian and little-endian representations.

print(bit32.byteswap(0xAABBCCDD)) --> 0xDDCCBBAA
print(bit32.byteswap(0x00000001)) --> 0x01000000

This is useful when reading or writing binary data that uses a different byte order (endianness) than expected, such as network protocols or file formats that store multi-byte integers in big-endian order.

Returns the number of consecutive zero bits in the 32-bit representation of the provided number starting from the left-most (most significant) bit. Returns 32 if the provided number is zero.

Returns the number of consecutive zero bits in the 32-bit representation of the provided number starting from the right-most (least significant) bit. Returns 32 if the provided number is zero.

Returns the unsigned number formed by the bits field to field + width - 1 from n. Bits are numbered from 0 (least significant) to 31 (most significant). All accessed bits must be in the range [0, 31]. The default for width is 1.

Returns a copy of n with the bits field to field + width - 1 replaced by the value v. See bit32.extract() for details about field and width.

Returns the number x rotated disp bits to the left. The number disp may be any representable integer. For any valid displacement, the following identity holds:

local x, disp = 0xF0, 35
assert(bit32.lrotate(x, disp) == bit32.lrotate(x, disp % 32))

In particular, negative displacements rotate to the right.

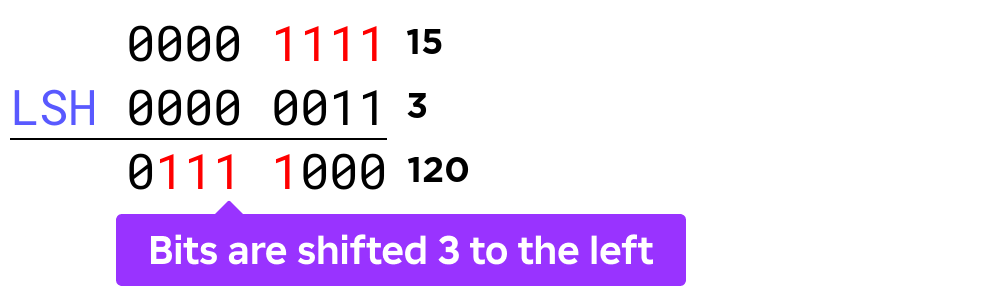

Returns the number x shifted disp bits to the left. The number disp may be any representable integer. Negative displacements shift to the right. In any direction, vacant bits are filled with zeros. In particular, displacements with absolute values higher than 31 result in zero (all bits are shifted out).

For positive displacements, the following equality holds:

local b, disp = 0xF0, 3
assert(bit32.lshift(b, disp) == (b * 2^disp) % 2^32)

Returns the number x rotated disp bits to the right. The number disp may be any representable integer.

For any valid displacement, the following identity holds:

local x, disp = 0xF0, 35
assert(bit32.rrotate(x, disp) == bit32.rrotate(x , disp % 32))

In particular, negative displacements rotate to the left.

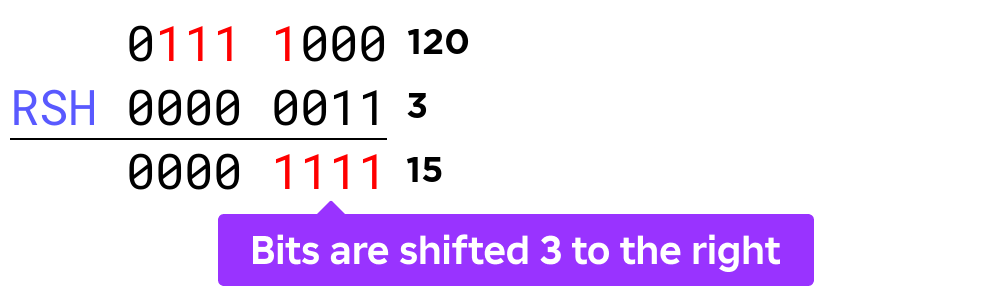

Returns the number x shifted disp bits to the right. The number disp may be any representable integer. Negative displacements shift to the left. In any direction, vacant bits are filled with zeros. In particular, displacements with absolute values higher than 31 result in zero (all bits are shifted out).

For positive displacements, the following equality holds:

local b, disp = 0xF00, 3
assert(bit32.rshift(b, disp) == (b % 2^32 / 2^disp) // 1)

This shift operation is what is called logical shift.
