Emote Bar

Emotes are a core component of any social game. The EmoteBar developer module aims to provide players an accessible, customizable way to facilitate meaningful social interaction.

Module usage#

Installation#

To use the EmoteBar module in a game:

1. From Studio's Window menu or Home tab toolbar, open the Toolbox and select the Creator Store tab.



2. Make sure the Models sorting is selected, then click the See All button for Categories.



3. Locate and click the Packages tile.

4. Locate the Emote Bar module and click it, or drag-and-drop it into the 3D view.



5. In the Explorer window, move the entire EmoteBar model into ReplicatedStorage. Upon running the game the module will begin running.

Configuration#

The module is preconfigured with 7 emotes and it can be easily customized with your own emotes and display options. Additionally, if the player owns any emotes from previous Roblox events such as Lil Nas X, Royal Blood, or Twenty One Pilots, those emotes will be automatically added to the list of available emotes.

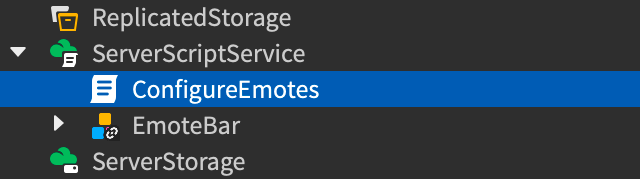

1. In ServerScriptService, create a new Script and rename it ConfigureEmotes.



2. Paste the following code into the new ConfigureEmotes script. The useDefaultEmotes setting of false overrides the default emotes and lets you define custom emotes via the setEmotes function.

   LuauCopy

   local ReplicatedStorage = game:GetService("ReplicatedStorage")

   local EmoteBar = require(ReplicatedStorage.EmoteBar)

   EmoteBar.configureServer({
       useDefaultEmotes = false,
   })

   EmoteBar.setEmotes({
       {
           name = "Hello",
           animation = "rbxassetid://3344650532",
           image = "rbxassetid://7719817462",
           defaultTempo = 1,
       },
       {
           name = "Applaud",
           animation = "rbxassetid://5915693819",
           image = "rbxassetid://7720292217",
           defaultTempo = 2,
       },
   })

Mega emotes#

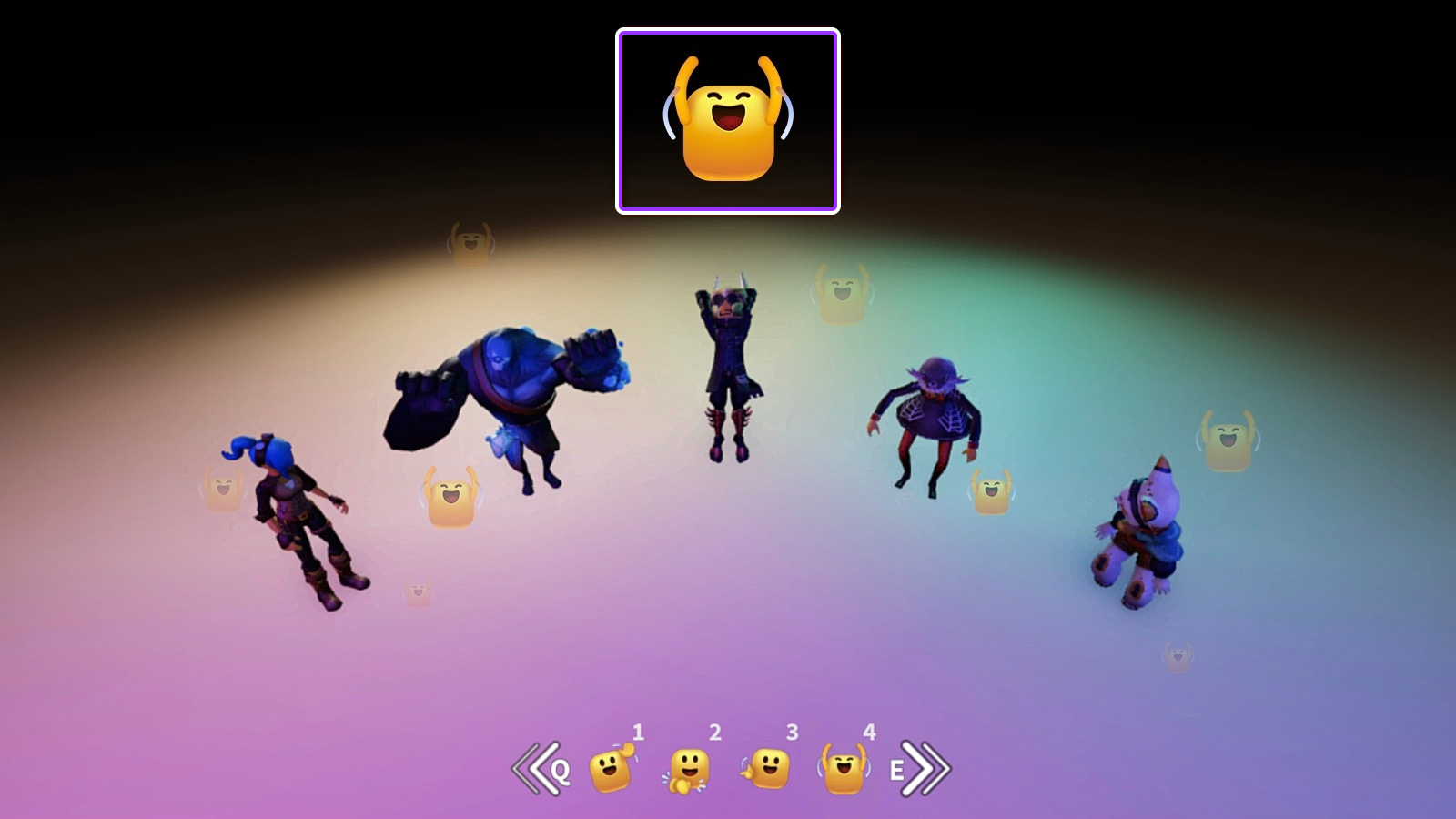

A mega emote is formed when multiple players in the same area perform the same emote at the same time. As more and more players join in, the mega emote grows larger. As players stop performing the emote, the mega emote grows smaller until eventually it disappears.

Tempo#

An emote's tempo is the speed at which it plays when its button is tapped once. The default speed of an emote is determined by its defaultTempo. An emote's speed can be increased or decreased by tapping its button faster or slower.

API reference#

Types#

Emote#

Each emote is represented by a dictionary with the following key-value pairs:

Enums#

EmoteBar.GuiType#

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

EmoteBar.configureClient({
	guiType = EmoteBar.GuiType.EmoteWheel,
})

Functions#

configureServer#

Overrides default server-side configuration options through the following keys/values in the config table. This function can only be called from a Script and changes will automatically replicate to all clients.

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

EmoteBar.configureServer({
	emoteMinPlayers = 2,
	playParticles = false,
})

configureClient#

Overrides default client-side configuration options through the following keys/values in the config table. This function can only be called from a LocalScript. Depending on the value of guiType, options in the noted tabs also apply.

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

EmoteBar.configureClient({
	guiType = EmoteBar.GuiType.EmoteBar,
	maxEmotesPerPage = 6,
	nextPageKey = Enum.KeyCode.Z,
	prevPageKey = Enum.KeyCode.C,
})

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

EmoteBar.configureClient({
	guiType = EmoteBar.GuiType.EmoteWheel,
})

setEmotes#

Sets the custom emotes to use. These will be added to the defaults if useDefaultEmotes is true, or replace the defaults if useDefaultEmotes is false. This function can only be called from a Script and changes will automatically replicate to all clients.

See Emote for the structure of each emote passed to this function.

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

EmoteBar.configureServer({
	useDefaultEmotes = false,
})

EmoteBar.setEmotes({
	{
		name = "Hello",
		animation = "rbxassetid://3344650532",
		image = "rbxassetid://7719817462",
		defaultTempo = 1,
	},
	{
		name = "Applaud",
		animation = "rbxassetid://5915693819",
		image = "rbxassetid://7720292217",
		defaultTempo = 2,
	},
})

setGuiVisibility#

Shows or hides the emotes GUI. This function can only be called from a LocalScript on a specific client.

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

EmoteBar.setGuiVisibility(false)

getEmote#

Gets an Emote by name. Returns nil if the emote cannot be found. This function can only be called from a LocalScript on a specific client.

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

local shrug = EmoteBar.getEmote("Shrug")

playEmote#

Plays the given Emote and fires the emotePlayed event on the server, if connected. This function can only be called from a LocalScript on a specific client.

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

local shrug = EmoteBar.getEmote("Shrug")
EmoteBar.playEmote(shrug)

lockEmote#

Locks the Emote with the given name. This function can only be called from a LocalScript on the client.

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

EmoteBar.lockEmote("Applaud")

unlockEmote#

Unlocks the Emote with the given name. This function can only be called from a LocalScript on the client.

local ReplicatedStorage = game:GetService("ReplicatedStorage")

local EmoteBar = require(ReplicatedStorage.EmoteBar)

EmoteBar.unlockEmote("Applaud")

Events#

emotePlayed#

Fires when any client plays an emote. This event can only be connected in a LocalScript.
