Plant reference project

Plant is a reference game where players plant and water seeds, so they can later harvest and sell the resulting plants.

The project focuses on common use cases that you might encounter when developing a game on Roblox. Where applicable, you'll find notes on tradeoffs, compromises, and the rationale of various implementation choices, so you can make the best decision for your own games.

Get the file#

1. Navigate to the Plant game page.
2. Click the ⋯ button and Edit in Studio.

Use cases#

Plant covers the following use cases:

• Session data and player data persistence
• UI view management
• Client-server networking
• First Time User Experience (FTUE)
• Hard and soft currency purchases

In addition, this project solves narrower sets of problems that are applicable to many games, including:

• Customization of an area in the place that's associated with a player
• Managing the player character's movement speed
• Creating an object that follows characters around
• Detecting what part of the world a character is in

Note that there are several use cases in this game that are too small, too niche, or don't demonstrate a solution to an interesting design challenge; these are not covered.

Project structure#

The first decision when creating a game is deciding how to structure the project, which mainly includes where to place specific instances in the data model and how to organize and structure entry points for both client and server code.

Data model#

The following table describes which container services in the data model instances are placed in.

Entry points#

Most projects organize code inside reusable ModuleScripts that can be imported across the entire codebase. ModuleScripts are reusable but they do not execute on their own; they need to be imported by a Script or LocalScript. Many Roblox projects will have a large number of Script and LocalScript objects, each pertaining to a behavior or particular system in the game, creating multiple points of entry.

For the Plant microgame, a different approach is implemented through a single LocalScript that is the entry point for all client code, and a single Script that is the entry point for all server code. The correct approach for your project depends on your requirements, but a single point of entry provides greater control over the order in which systems are executed in.

The following lists describe the tradeoffs of both approaches:

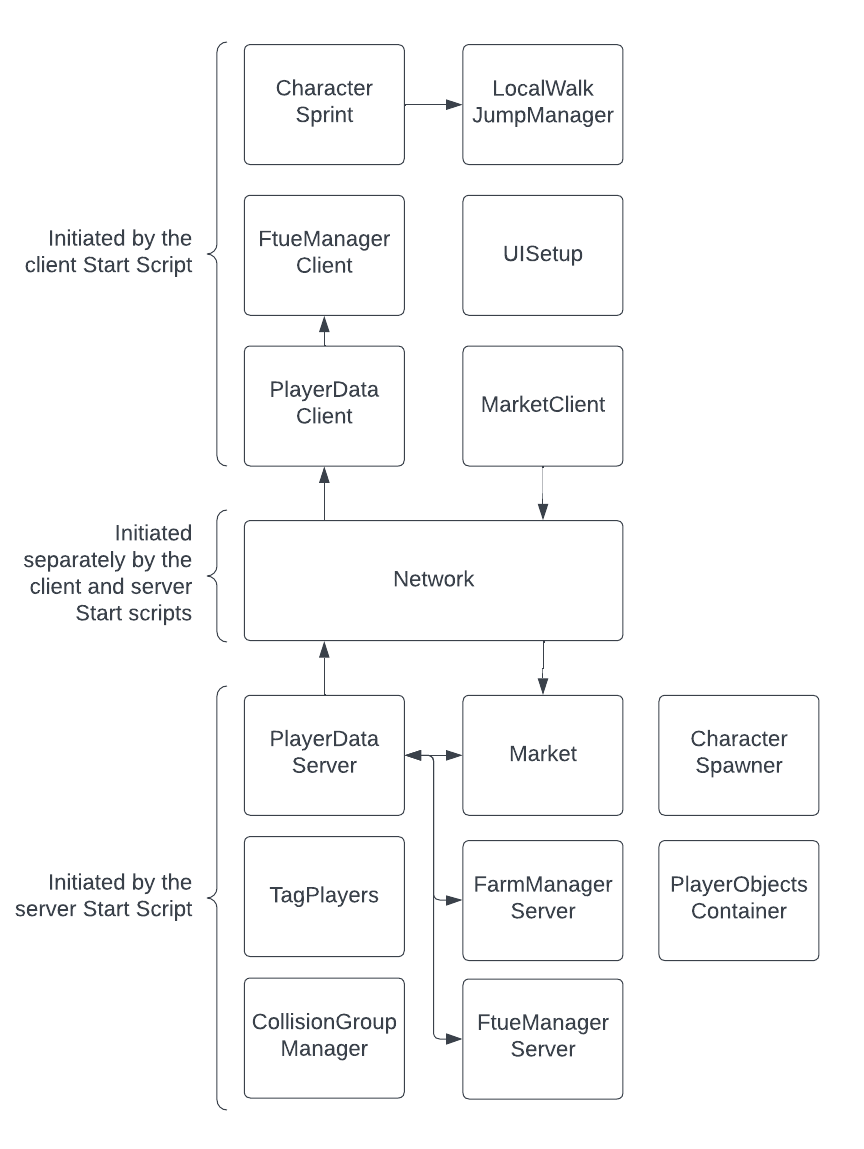

High level systems architecture#

The top-level systems in the project are detailed below. Some of these systems are substantially more complex than others, and in many cases their functionality is abstracted across a hierarchy of other classes.

Each of these systems is a "singleton," in that it's a non-instantiable class that is instead initialized by the relevant client or server start script. You can read more about the singleton pattern later in this guide.

Server#

The following systems are associated with the server.

Client#

The following systems are associated with the client.

Client-server communication#

Most Roblox games involve some element of communication between the client and server. This can include the client requesting the server perform a certain action and the server replicating updates to the client.

In this project, client-server communication is kept as generic as possible by limiting the use of RemoteEvent and RemoteFunction objects in order to decrease the amount of special rules to keep track of. This project uses the following methods, in order of preference:

• Replication via the player data system.
• Replication via attributes.
• Replication via tags.
• Messaging directly via the Network module.

Replication via player data system#

The player data system allows data to be associated with the player which persists between save sessions. This system provides replication from client to server and a set of APIs that can be used to query data and subscribe to changes, making it ideal for replicating changes to player state from the server to the client.

For example, rather than firing a bespoke UpdateCoins RemoteEvent to tell the client how many coins it has, you can call the following and let the client subscribe to it via the PlayerDataClient.updated event.

PlayerDataServer.setValue(player, "coins", 5)

Of course, this is only useful for server-to-client replication and for values that you want to persist between sessions, but this applies to a surprising number of cases in the project, including:

• The current FTUE stage
• The player's inventory
• The amount of coins the player has
• The state of the player's farm

Replication via attributes#

In situations where the server needs to replicate a custom value to the client that's specific to a given Instance, you can use attributes. Roblox automatically replicates attribute values, so you don't need to maintain any code paths to replicate state associated with an object. Another advantage is that this replication happens alongside the instance itself.

This is particularly useful for instances created at runtime, as attributes set on a new instance before it is parented to the data model will replicate atomically with the instance itself. This circumvents any need to write code to "wait" for extra data to be replicated via a RemoteEvent or StringValue.

You can also directly read attributes from the data model, from either the client or the server, with the GetAttribute() method, and subscribe to changes with the GetAttributeChangedSignal() method. In the Plant project, this approach is used for, amongst other things, replicating the current status of plants to clients.

Replication via tags#

CollectionService lets you apply a string tag to an Instance. This is useful for categorizing instances and replicating that categorization to the client.

For example, the CanPlant tag is applied on the server to signify to the client that a given pot is able to receive a plant.

Message directly via network module#

For situations where none of the previous options apply, you can use custom network calls through the Network module. This is the only option in the project that allows client-to-server communication and is therefore most useful for transmitting client requests and receiving a server response.

Plant uses direct network calls for a variety of client requests, including:

• Watering a plant
• Planting a seed
• Purchasing an item

The drawback with this approach is that each individual message requires some bespoke configuration which can increase the complexity of the project, although this has been avoided wherever possible, particularly for server-to-client communication.

Classes and singletons#

Classes in the Plant project, like instances on Roblox, can be created and destroyed. Its class syntax is inspired by the idiomatic Lua approach to object-oriented programming with a number of changes to enable strict typechecking support.

Instantiation#

Many classes in the project are associated with one or more Instances. Objects of a given class are created using a new() method, consistent with how instances are created in Roblox using Instance.new().

This pattern is generally used for objects where the class has a physical representation in the data model, and the class extends its functionality. A good example is BeamBetween which creates a Beam object between two given Attachment objects and keeps those attachments orientated so that the beam is always facing upwards. These instances could be cloned from a prefabricated version in ReplicatedStorage or passed into new() as an argument and stored inside the object under self.

Corresponding instances#

As noted above, many classes in this project have a data model representation, an instance that corresponds with the class and is manipulated by it.

Rather than creating these instances when a class object is instantiated, the code generally opts to Clone() a prefabricated version of the Instance stored under ReplicatedStorage or ServerStorage. Although it would be possible to serialize the properties of these instances and create them from scratch in the class' new() functions, doing so would make editing the objects very cumbersome and make them harder for a reader to parse. Additionally, cloning an instance is generally a faster operation than creating a new instance and customizing its properties at runtime.

Composition#

Although inheritance is possible in Luau using metatables, the project opts to instead allow classes to extend each other through composition. When combining classes through composition, the "child" object is instantiated in the new() method of the class and is included as a member under self.

For an example of this in action, see the CloseButton class which wraps the Button class.

Cleanup#

Similar to how an Instance can be destroyed with the Destroy() method, classes which can be instantiated can also be destroyed. The destructor method for project classes is destroy() with a lowercase d for camelCase consistency across the codebase's methods, as well as to distinguish between the project's classes and Roblox instances.

The role of the destroy() method is to destroy any instances created by the object, disconnect any connections, and call destroy() on any child objects. This is particularly important for connections because instances with active connections are not cleaned up by the Luau garbage collector, even if no references to the instance or connections to the instance remain.

Singletons#

Singletons, as the name suggests, are classes for which only one object can ever exist. They are the project's equivalent of Roblox's Services. Rather than storing a reference to the singleton object and passing it around in the Luau code, Plant takes advantage of the fact that requiring a ModuleScript caches its returned value. This means that requiring the same singleton ModuleScript from different places consistently provides the same returned object. The only exception to this rule would be if different environments (client or server) accessed the ModuleScript.

Singletons are distinguished from instantiable classes by the fact that they don't have a new() method. Rather, the object along with its methods and state is returned directly via the ModuleScript. As singletons are not instantiated, the self syntax is not used and methods are instead called with a dot (.) rather than a colon (:).

Strict type inference#

Luau supports gradual typing which means you're free to add optional type definitions to some or all of your code. In this project, strict typechecking is used for every script. This is the least permissive option for Roblox's Script Analysis tool and thus the most likely to catch type errors before runtime.

Typed class syntax#

The established approach to creating classes in Lua is well documented, however it is not well suited to strong Luau typing. In Luau, the simplest approach for getting the type of a class is the RobloxGlobals.typeof() method:

type ClassType = typeof(Class.new())

This works but it isn't very useful when your class is initiated with values that only exist at runtime, for example Player objects. Additionally, the assumption made in idiomatic Lua class syntax is that declaring a method on a class self will always be an instance of that class; this is not an assumption the type inference engine can make.

In order to support strict type inference, the Plant project uses a solution that differs from idiomatic Lua class syntax in a number of ways, some of which may feel non-intuitive:

• The definition of self is duplicated, both in the type declaration and in the constructor. This introduces a maintainability burden, but warnings will be flagged if the two definitions fall out of sync with each other.
• Class methods are declared with a dot, so self can be explicitly declared to be of type ClassType. Methods can still be called with a colon as expected.

--!strict

local MyClass = {}
MyClass.__index = MyClass

export type ClassType = typeof(setmetatable(
	{} :: {
		property: number,
	},
	MyClass
))

function MyClass.new(property: number): ClassType
	local self = {
		property = property,
	}

	setmetatable(self, MyClass)

	return self
end

function MyClass.addOne(self: ClassType)
	self.property += 1
end

return MyClass

Cast types after logical guards#

At the time of writing, the type of a value is not narrowed after a guard conditional statement. For example, following the guard below, the type of optionalParameter is not narrowed to number.

--!strict

local function foo(optionalParameter: number?)
	if not optionalParameter then
		return
	end

	print(optionalParameter + 1)
end

To mitigate this, new variables are created after these guards with their type explicitly cast.

--!strict

local function foo(optionalParameter: number?)
	if not optionalParameter then
		return
	end

	local parameter = optionalParameter :: number

	print(parameter + 1)
end

Traverse DataModel hierarchies#

In some cases, the codebase needs to traverse the data model hierarchy of a tree of objects that are created at runtime. This presents an interesting challenge for typechecking. At the time of writing, it's not possible to define a generic data model hierarchy as a type. As a result, there are cases where the only type information available for a data model structure is the type of the top level instance.

One approach to this challenge is to cast to any and then refine. For example:

local function enableVendor(vendor: Model)
	local zonePart: BasePart = (vendor :: any).ZonePart
end

The problem with this approach is that it impacts readability. Instead, the project uses a generic module called getInstance for traversing data model hierarchies that casts to any internally.

local function enableVendor(vendor: Model)
	local zonePart: BasePart = getInstance(vendor, "ZonePart")
end

As the type engine's understanding of the data model evolves, it's possible that patterns like this will no longer be necessary.

User interface#

Plant includes a variety of complex and simple 2D user interfaces. These include non-interactive heads up display (HUD) items like the coin counter and complex interactive menus like the shop.

UI approach#

You can loosely compare Roblox UI to the HTML DOM, because it's a hierarchy of objects that describe what the user should be seeing. Approaches to creating and updating a Roblox UI are broadly divided into imperative and declarative practices.

Plant uses an imperative approach under the notion that showing the transformations directly gives a more effective overview of how UI is created and manipulated on Roblox. This would not be possible with a declarative approach. Some repeated UI structures and logic are also abstracted into reusable components to avoid a common pitfall in imperative UI design.

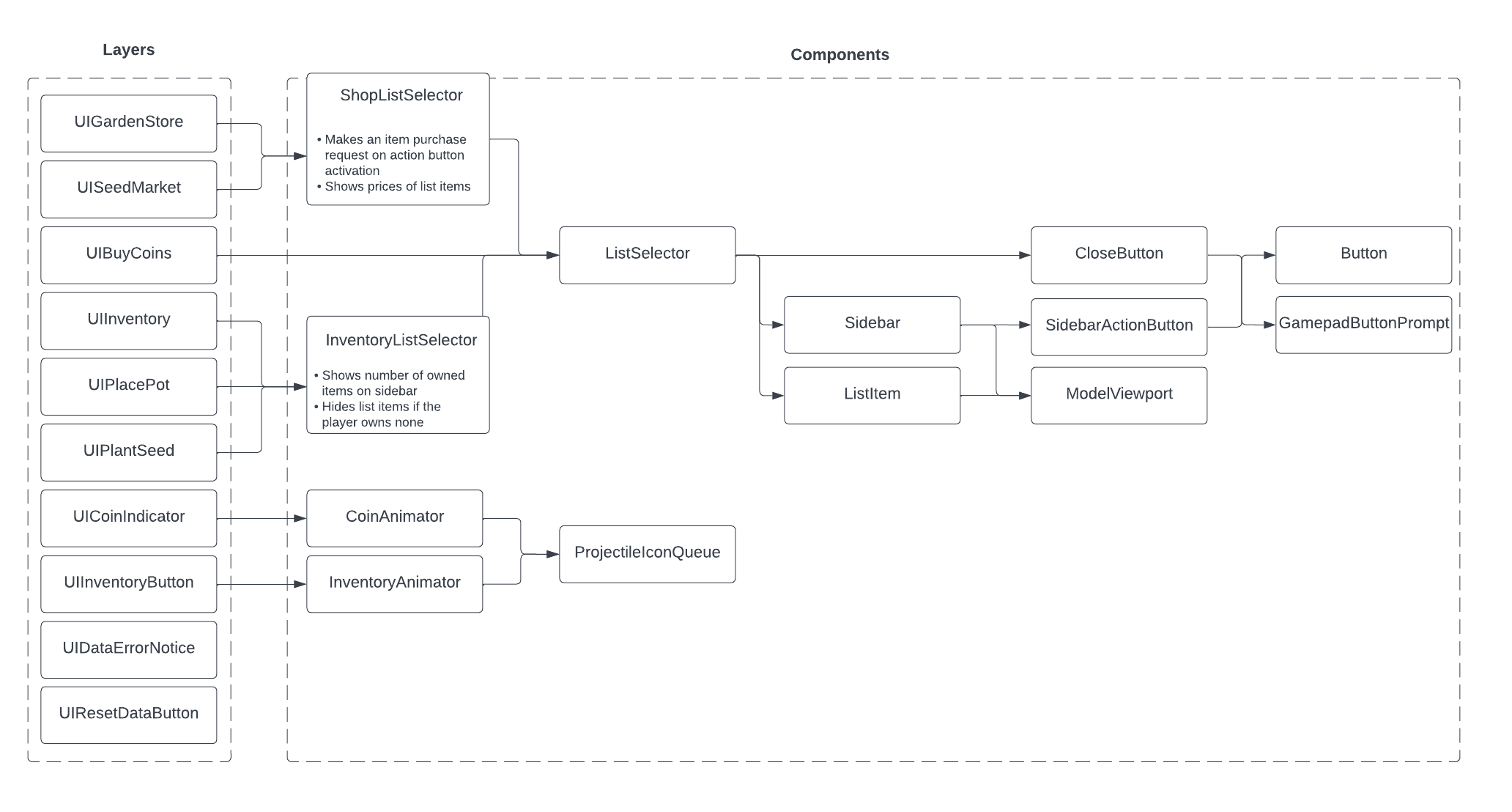

High-level architecture#

Layer and components#

In Plant, all UI structures are either a Layer or a Component.

• Layer is defined as a top level grouping singleton that wraps prefabricated UI structures in ReplicatedStorage. A layer may contain a number of components, or it may encapsulate its own logic entirely. Examples of layers are the inventory menu or the number of coins indicator in the heads up display.
• Component is a reusable UI element. When a new component object is instantiated, it clones a prefabricated template from ReplicatedStorage. Components may in themselves contain other components. Examples of components are a generic button class or the concept of a list of items.

View handling#

A common UI management problem is view handling. This project has a range of menus and HUD items, some of which listen to user input, and careful management of when they are visible or enabled is required.

Plant approaches this problem with its UIHandler system which manages when a UI layer should or should not be visible. All UI layers in the game are categorized as HUD or Menu and their visibility is managed by the following rules:

• The enabled state of Menu and HUD layers can be toggled.
• Enabled HUD layers are only shown if no Menu layers are enabled.
• Enabled Menu layers are stored in a stack, and only one Menu layer is visible at a time. When a Menu layer is enabled, it is inserted to the front of the stack and shown. When a Menu layer is disabled, it is removed from the stack and the next enabled Menu layer in the queue is shown.

This approach is intuitive because it allows menus to be navigated with history. If one menu is opened from another menu, closing the new menu will show the old menu again.

UI layer singletons register themselves with the UIHandler and are provided with a signal that fires when its visibility should change.

Further reading#

From this thorough overview of the Plant project, you may want to explore the following guides which go further in depth on related concepts and topics.

• Client-Server Model — An overview of the client-server model in Roblox.
• Luau — Details on Luau, the Roblox-created scripting language descended from Lua 5.1.
• Remote Events and Callbacks — All about remote network events and callbacks for communication across the client-server boundary.
• UI — Details on user interface objects and design on Roblox.
