Customize the chat window

Customize the chat window and message UI of your in-game text chat.

The in-game text chat system, powered by TextChatService, allows players to easily communicate and socialize with each other in live games. In addition to supporting the default text chat, you can customize the front‑end user interface.

Chat window configuration#

The overall chat window consists of:

Chat window
Input bar
Channel tabs (optional)

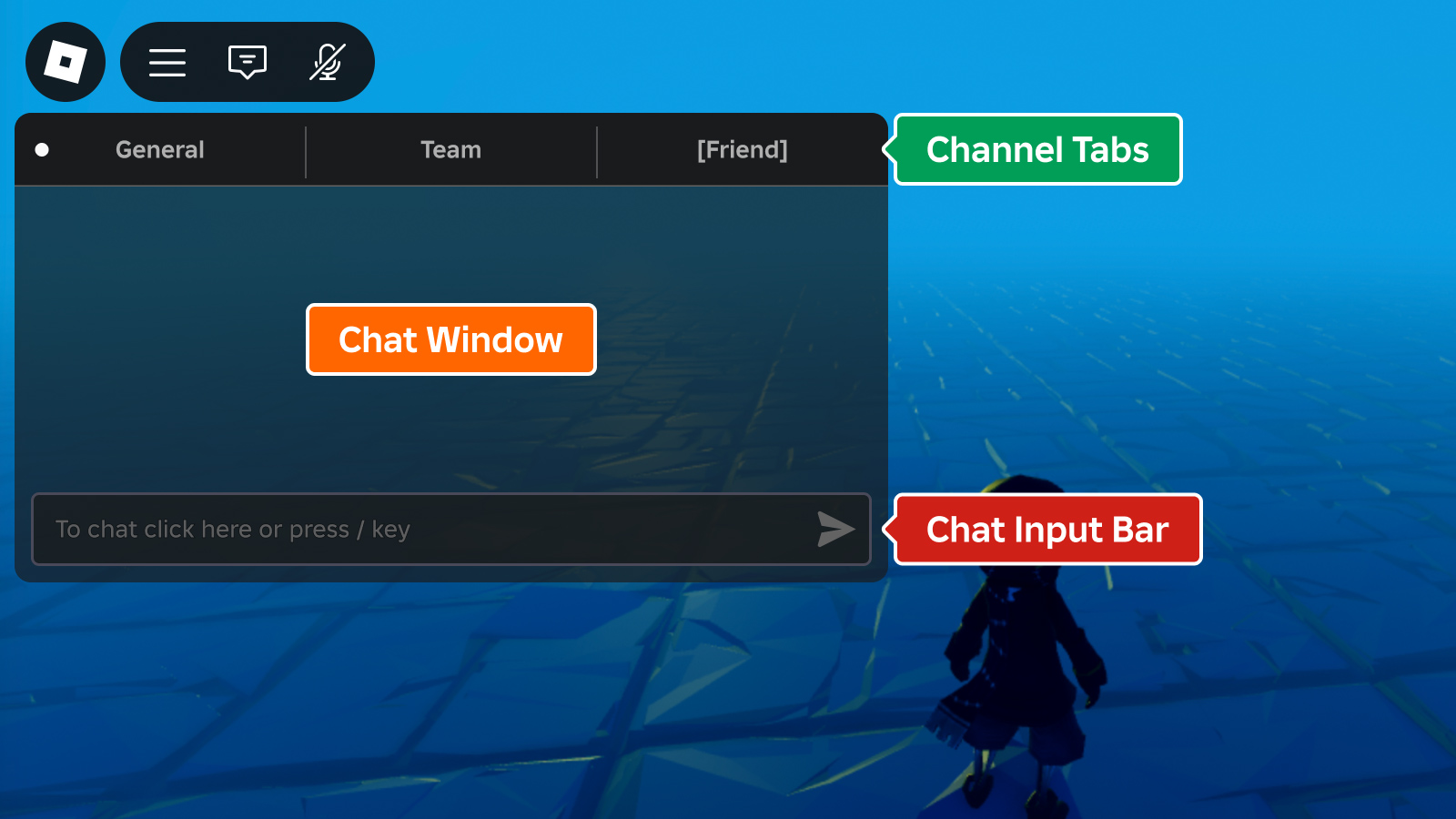

Core components of the text chat window.

The channel tabs are disabled by default and each component can be toggled on and off in Studio or through scripting:

Studio

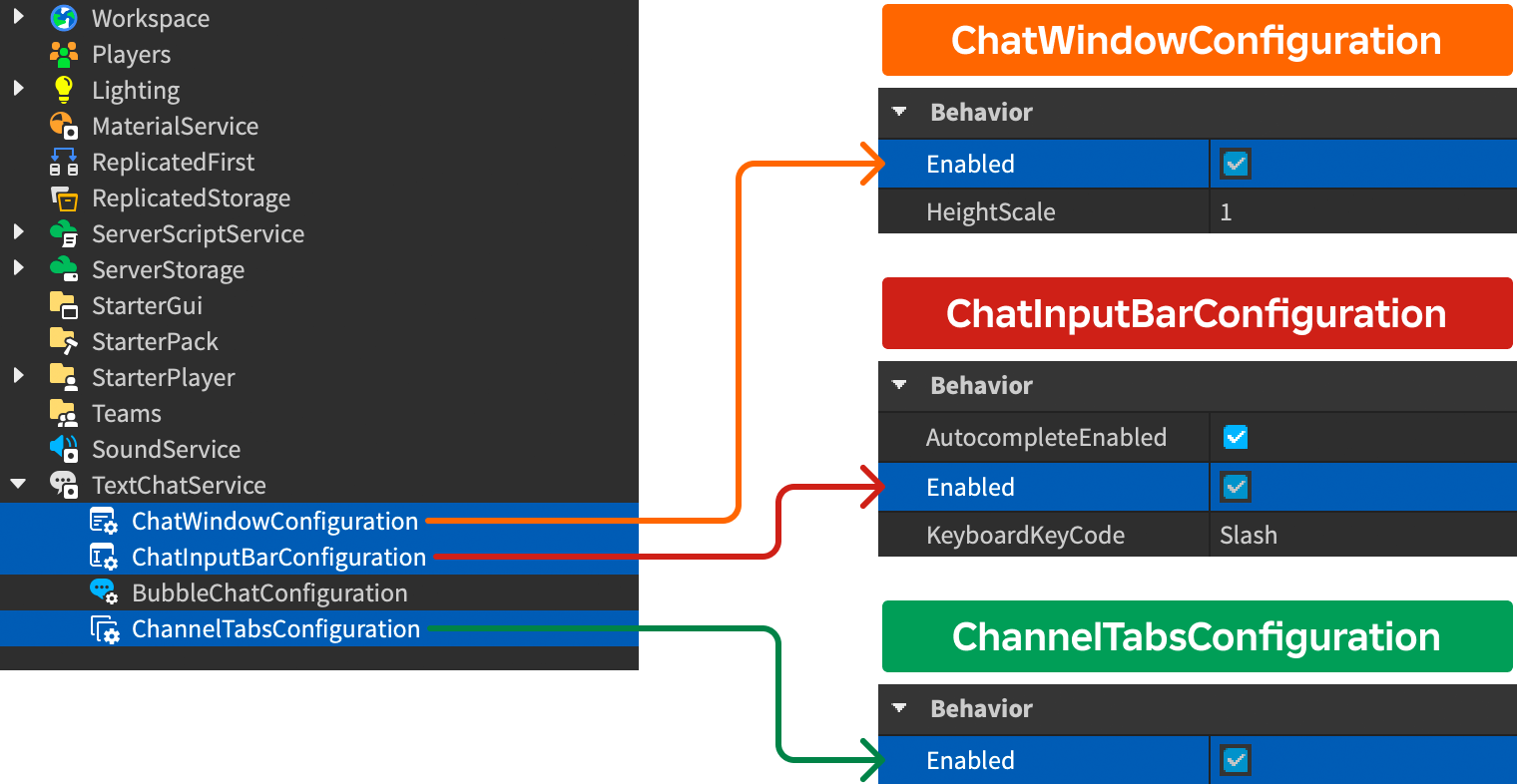

In the Explorer window, expand the TextChatService branch and select ChatWindowConfiguration, ChatInputBarConfiguration, or ChannelTabsConfiguration. Then enable or disable the component in the Properties window.

Scripting

From a client script within StarterPlayerScripts, enable each component as desired:

Luau

local TextChatService = game:GetService("TextChatService")

local ChatWindowConfiguration = TextChatService:FindFirstChildOfClass("ChatWindowConfiguration")
local ChatInputBarConfiguration = TextChatService:FindFirstChildOfClass("ChatInputBarConfiguration")
local ChannelTabsConfiguration = TextChatService:FindFirstChildOfClass("ChannelTabsConfiguration")

-- Enable chat window
if ChatWindowConfiguration then
	ChatWindowConfiguration.Enabled = true
end
-- Enable input bar
if ChatInputBarConfiguration then
	ChatInputBarConfiguration.Enabled = true
end
-- Enable channel tabs
if ChannelTabsConfiguration then
	ChannelTabsConfiguration.Enabled = true
end

When ChannelTabsConfiguration is enabled, each default TextChannel appears in a tab as outlined in the following table. In addition, each custom TextChannel creates a tab corresponding to the channel's Name property.

Default channel	Tab name
`RBXGeneral`	General
`RBXSystem`	General (combined into a single tab with `RBXGeneral`)
`RBXTeam`	Team
`RBXWhisper`	User name of the other player

Window appearance#

Appearance of the overall chat window is customizable through ChatWindowConfiguration.

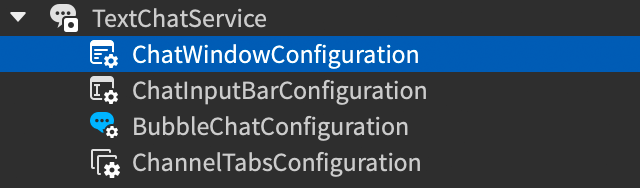

ChatWindowConfiguration instance in Explorer hierarchy.

Property	Description	Default
`BackgroundColor3`	`Color3` background color of the chat window.	`[25, 27, 29]`
`BackgroundTransparency`	Transparency of the chat window's background.	`0.3`
`Enabled`	Whether to show the default chat window. Set to `false` to hide.	`true`
`FontFace`	`Font` of chat window text.	`BuilderSansMedium`
`TextColor3`	`Color3` of chat window text.	`[255, 255, 255]`
`TextSize`	Size of chat window text.	`14`
`TextStrokeColor3`	`Color3` of the stroke for chat window text.	`[0, 0, 0]`
`TextStrokeTransparency`	Transparency of the stroke for chat window text.	`0.5`
`HorizontalAlignment`	Horizontal alignment of the chat window.	`Left`
`VerticalAlignment`	Vertical alignment of the chat window.	`Top`
`HeightScale`	Height scale of the chat window relative to the screen size.	`1`
`WidthScale`	Width scale of the chat window relative to the screen size.	`1`

Input bar appearance#

Appearance of the chat input bar is customizable through ChatInputBarConfiguration.

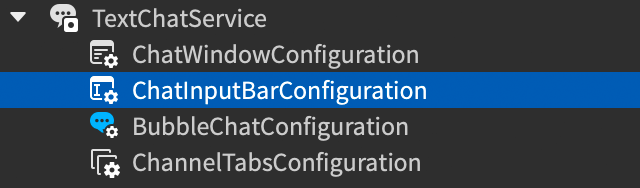

ChatInputBarConfiguration instance in Explorer hierarchy.

Property	Description	Default
`BackgroundColor3`	`Color3` background color of the chat input bar.	`[25, 27, 29]`
`BackgroundTransparency`	Transparency of the chat input bar's background.	`0.2`
`FontFace`	`Font` of chat input text.	`BuilderSansMedium`
`PlaceholderColor3`	`Color3` of placeholder chat input text.	`[178, 178, 178]`
`TextColor3`	`Color3` of player-entered chat input text.	`[255, 255, 255]`
`TextSize`	Size of chat input text.	`14`
`TextStrokeColor3`	`Color3` stroke color of chat input text.	`[0, 0, 0]`
`TextStrokeTransparency`	Transparency of the stroke for chat input text.	`0.5`
`AutocompleteEnabled`	Whether the text chat system shows autocomplete options for emojis and commands. Emojis are autocompleted by typing `:` followed by non-whitespace characters, while commands are autocompleted by typing `/`.	`true`
`KeyboardKeyCode`	Additional key players can press to trigger focusing on the default chat input bar.	`Slash`

Channel tabs appearance#

Appearance of the channel tabs is customizable through ChannelTabsConfiguration.

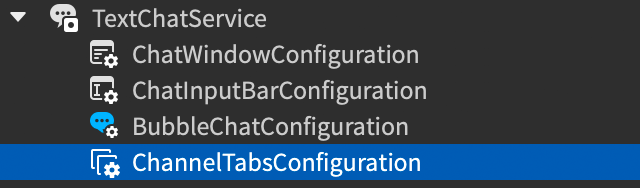

ChannelTabsConfiguration instance in Explorer hierarchy.

Property	Description	Default
`BackgroundColor3`	`Color3` background color of the channel tabs.	`[25, 27, 29]`
`BackgroundTransparency`	Transparency of the channel tabs' background.	`0`
`HoverBackgroundColor3`	`Color3` background color of tabs when hovering over them.	`[125, 125, 125]`
`FontFace`	`Font` for the text in channel tabs.	`BuilderSansBold`
`TextColor3`	`Color3` of text in an unselected tab.	`[175, 175, 175]`
`SelectedTabTextColor3`	`Color3` of text in a selected tab.	`[255, 255, 255]`
`TextSize`	Size of the text in channel tabs.	`18`
`TextStrokeColor3`	`Color3` stroke color of the text in channel tabs.	`[0, 0, 0]`
`TextStrokeTransparency`	Transparency of the stroke for text in channel tabs.	`1`

Customize messages#

You can customize the appearance of chat message bodies and prefixes using ChatWindowMessageProperties and TextChatService.OnChatWindowAdded callbacks without overriding the existing UI. The customization options let you modify the appearance of chat messages to match your game's theme, and you can also sort or highlight messages from different user groups by coloring prefixes or adding chat tags.

ChatWindowMessageProperties and OnChatWindowAdded only affect the appearance of messages in the chat window. To customize chat bubbles, see Bubble Chat.

Color user names#

When a user sends a chat message, their DisplayName displays as the prefix portion of the message. By default, each user's name is colored according to their Player.TeamColor but you can change the colors of chat names using ChatWindowMessageProperties and OnChatWindowAdded. The following LocalScript in StarterPlayerScripts assigns a predetermined color to each user, picking randomly from a table of RGB colors.

Luau

local TextChatService = game:GetService("TextChatService")

local chatWindowConfiguration = TextChatService.ChatWindowConfiguration

local nameColors = {
	Color3.fromRGB(255, 0, 0),
	Color3.fromRGB(0, 255, 0),
	Color3.fromRGB(0, 0, 255),
	Color3.fromRGB(255, 255, 0),
}

TextChatService.OnChatWindowAdded = function(message: TextChatMessage)
	local properties = chatWindowConfiguration:DeriveNewMessageProperties()

	local textSource = message.TextSource
	if textSource then
		local index: number = (textSource.UserId % #nameColors) + 1
		local randomColor: Color3 = nameColors[index]

    	properties.PrefixTextProperties = chatWindowConfiguration:DeriveNewMessageProperties()
		properties.PrefixTextProperties.TextColor3 = randomColor
	end

	return properties
end

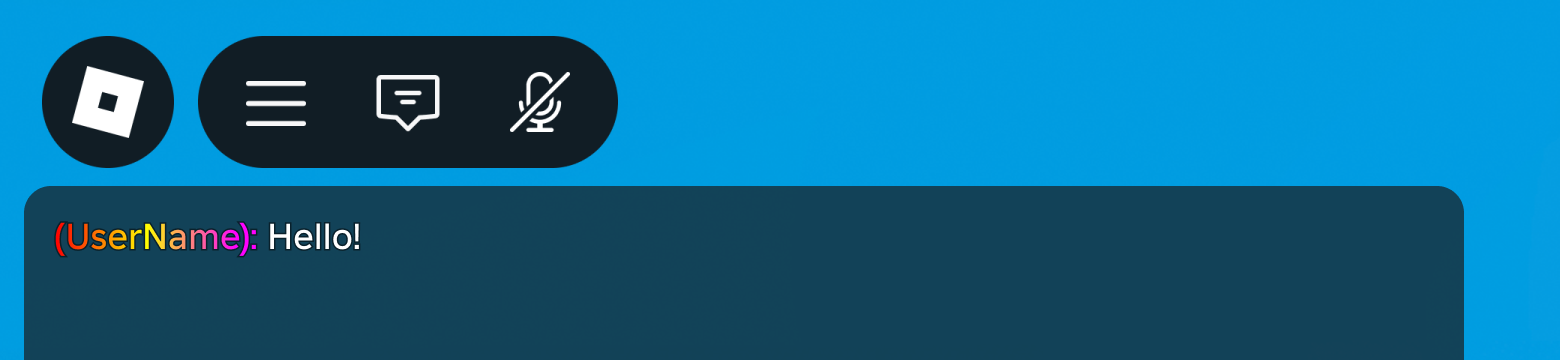

You can also apply color and transparency gradients to color message prefixes using UIGradient.

Luau

local TextChatService = game:GetService("TextChatService")

local chatWindowConfiguration = TextChatService.ChatWindowConfiguration

local gradient = Instance.new("UIGradient")
gradient.Color = ColorSequence.new{
	ColorSequenceKeypoint.new(0, Color3.fromRGB(255, 0, 0)),
	ColorSequenceKeypoint.new(0.5, Color3.fromRGB(255, 255, 0)),
	ColorSequenceKeypoint.new(1, Color3.fromRGB(255, 0, 255))
}

TextChatService.OnChatWindowAdded = function(message: TextChatMessage)
	local properties = chatWindowConfiguration:DeriveNewMessageProperties()

	local textSource = message.TextSource
	if textSource then
    	properties.PrefixTextProperties = chatWindowConfiguration:DeriveNewMessageProperties()
		gradient:Clone().Parent = properties.PrefixTextProperties
	end

	return properties
end

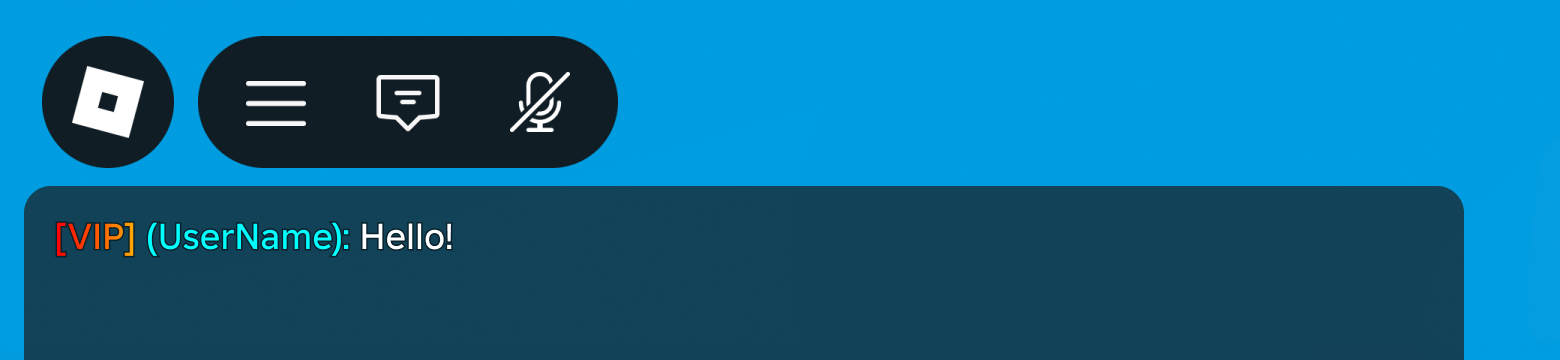

Rich text customization#

Rich text font color tags can be used to format chat messages, helpful if you want to apply formatting to very specific parts of the message. Note that rich text does not support gradients, but the following code sample shows how you can move the user name (stored in TextChatMessage.PrefixText) into the message body and then apply rich text tagging to only the name portion.

Luau

local TextChatService = game:GetService("TextChatService")
local Players = game:GetService("Players")

local chatWindowConfiguration = TextChatService.ChatWindowConfiguration

local gradient = Instance.new("UIGradient")
gradient.Color = ColorSequence.new{
	ColorSequenceKeypoint.new(0, Color3.fromRGB(255, 0, 0)),
	ColorSequenceKeypoint.new(0.5, Color3.fromRGB(255, 255, 0)),
	ColorSequenceKeypoint.new(1, Color3.fromRGB(255, 0, 255))
}

TextChatService.OnChatWindowAdded = function(message: TextChatMessage)
	local properties = chatWindowConfiguration:DeriveNewMessageProperties()

	if message.TextSource then
		properties.PrefixText = "[VIP]"
		properties.Text = string.format("<font color='#00ffff'>%s</font>", message.PrefixText) .. " " .. message.Text

		properties.PrefixTextProperties = chatWindowConfiguration:DeriveNewMessageProperties()
		gradient:Clone().Parent = properties.PrefixTextProperties
	end

	return properties
end

Messages from non‑player sources#

When TextChatService.CreateDefaultTextChannels is true, one of the default text channels is the RBXSystem channel. The default chat scripts automatically display system messages in this channel. You can customize the appearance of these messages using the TextChannel.OnIncomingMessage callback.

You might want to customize or alter the system messages that are automatically emitted by the chat system. Since the default system messages are localized for users, you should reference them by TextChatMessage.Metadata in your text chat callbacks if you wish to customize their appearance. For example, you could use Metadata to identify system messages, error messages, or messages from specific systems in your game.

System#

To deliver a system message to the local player, such as "speech" from a public address system, call DisplaySystemMessage() from the default RBXGeneral channel with a prefix before the player's display name.

Luau

local Players = game:GetService("Players")
local TextChatService = game:GetService("TextChatService")

local player = Players.LocalPlayer
local generalChannel: TextChannel = TextChatService:WaitForChild("TextChannels").RBXGeneral

local PREFIX = "[Guide] Welcome "

-- Send "system message" to player with their display name appended
generalChannel:DisplaySystemMessage(PREFIX .. player.DisplayName)

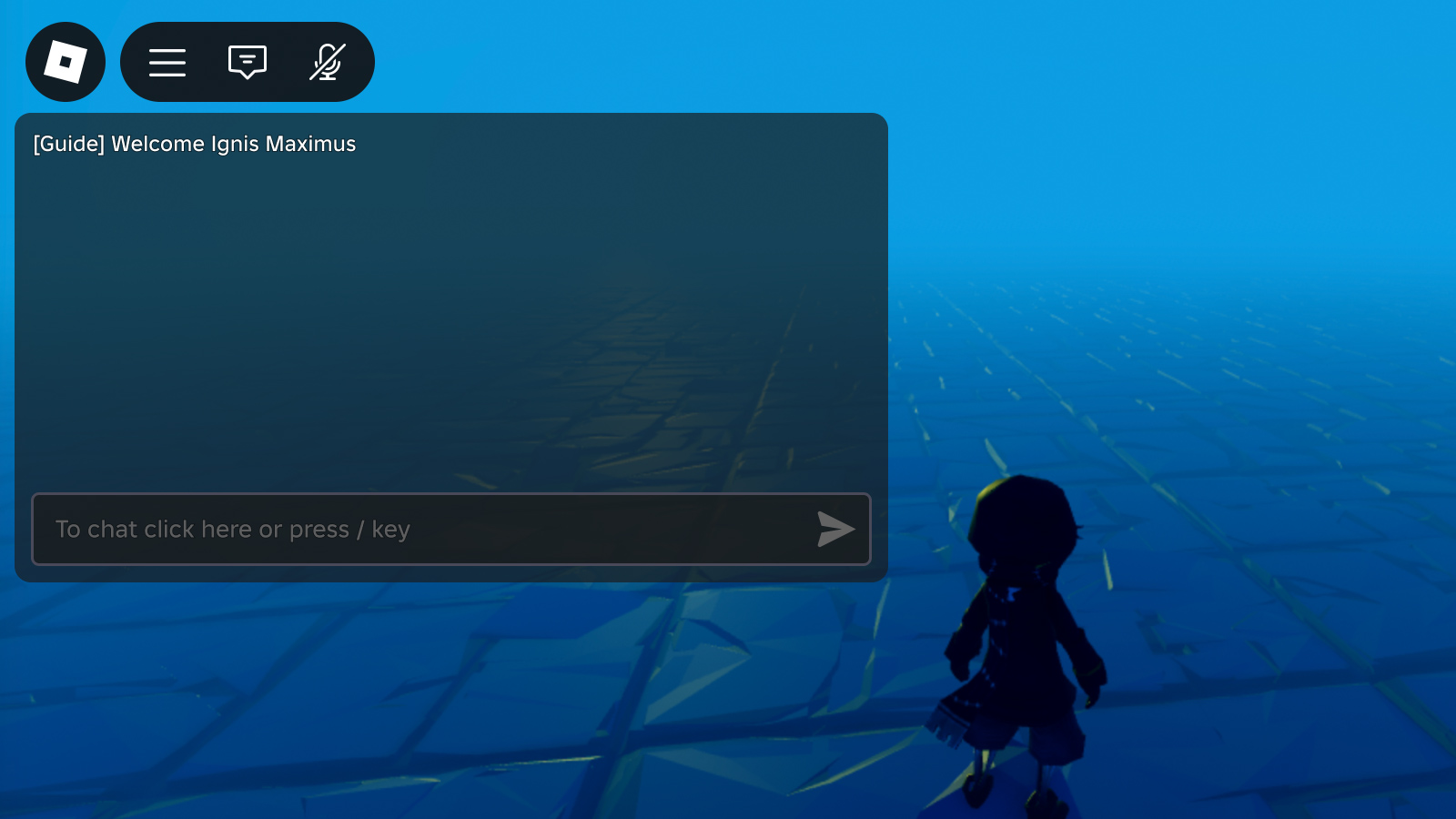

Image showing a basic system message in the chat window.

NPC/object#

You can also stylize non-player dialogue and add chat bubbles to make it appear like messages are coming from an NPC or object within the 3D world.

Luau

local TextChatService = game:GetService("TextChatService")
local Workspace = game:GetService("Workspace")

local generalChannel: TextChannel = TextChatService:WaitForChild("TextChannels").RBXGeneral

TextChatService.OnIncomingMessage = function(textChatMessage: TextChatMessage)
	local properties = Instance.new("TextChatMessageProperties")

	-- Check for system messages that contain metadata
	if not textChatMessage.TextSource and textChatMessage.Metadata ~= "" then

		-- Add prefix to make message look like it was sent by a player
		properties.PrefixText = string.format("<font color='#%s'>%s: </font>", "#50C999", textChatMessage.Metadata)

		-- Add bubble chat
		TextChatService:DisplayBubble(Workspace.Statue, textChatMessage.Text)
	end

	return properties
end

local message = "Welcome! I will be your guide."
local speakerName = "Ancient Knight"
generalChannel:DisplaySystemMessage(message, speakerName)

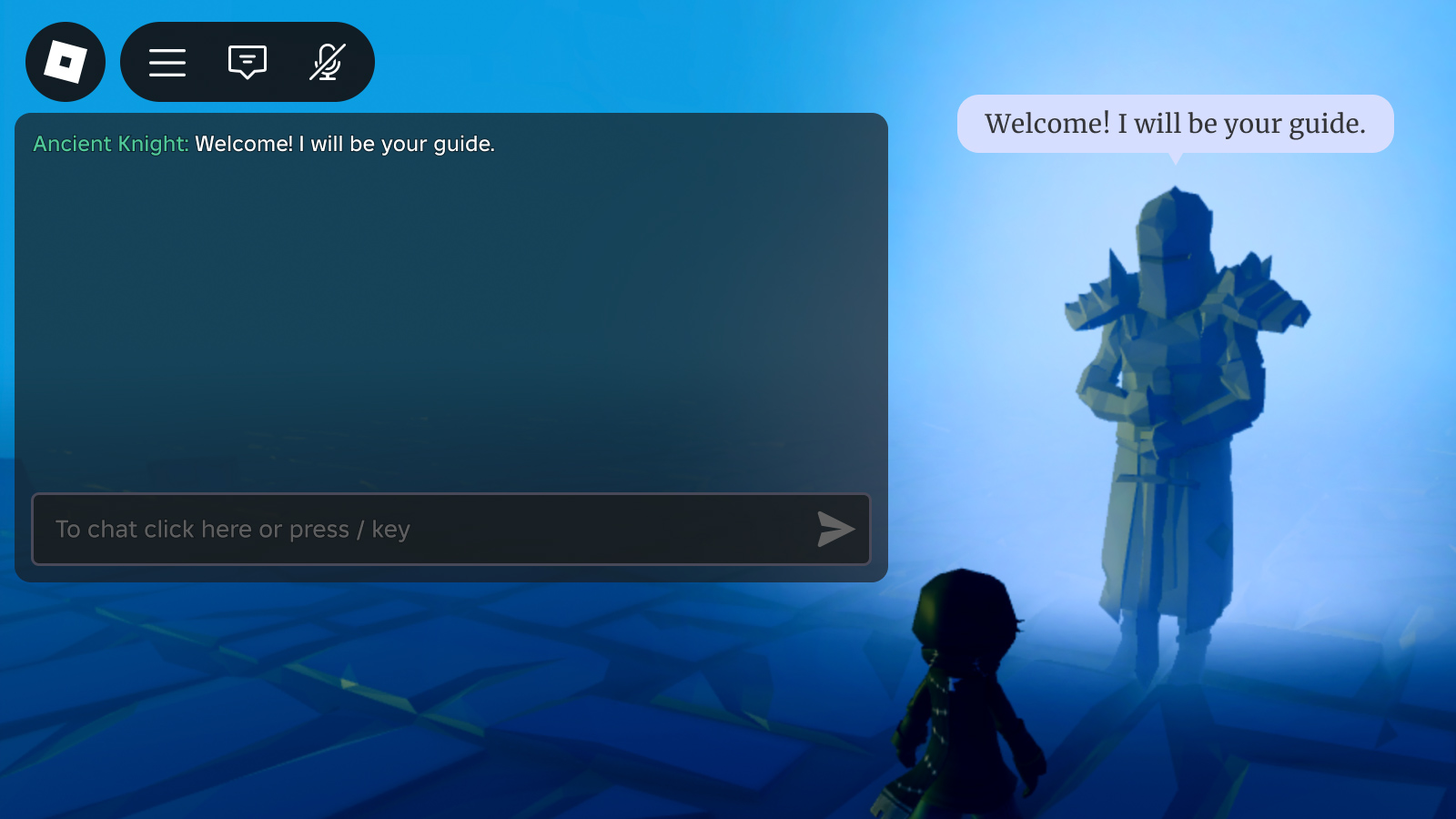

Image showing a knight statue NPC broadcasting a chat message to the chat window, along with a chat bubble above its head.
